Tool: panel-test

panel-test paints the panel solid Red → Green → Blue → White → Black on repeat. It exists to isolate the hardware layer from the config layer: when widgets render wrong, this tells you whether your led_rgb_sequence, panel_type, chain_length, or gpio_slowdown is at fault before you start tearing apart your TOML. The implementation is a small script at scripts/panel_color_test.py.

It reads the [display] section of any led-ticker config TOML and reuses the same LedFrame construction the main app uses — so every panel knob (FM6126A init, BRG-vs-RGB remapping, chain length, rp1_pio, slowdown) is exactly as the running ticker would see it. Widget config is ignored entirely.

Quick start — host

For a dev laptop or any non-Docker host with the rgbmatrix Python bindings installed:

make panel-test                                        # uses config/config.toml (this sign's config), 2s holds
make panel-test CONFIG=config/config.small_sign.toml  # different sign
make panel-test HOLD=4                                 # slower cycle for a long stare

The make target wraps uv run python scripts/panel_color_test.py --config $(CONFIG) --hold $(HOLD) — same CONFIG= override convention as make validate.

Ctrl-C exits cleanly: the script paints one final black frame and swaps it on, so the panel never sticks on the last color of the cycle.

Quick start — Docker (on the Pi)

This is what you’ll actually run on a deployed sign. The diagnostic and the main ticker cannot share the matrix, so stop the ticker first:

docker compose stop
make panel-test-docker
# ...observe the panel, Ctrl-C when done...
docker compose start

The panel-test-docker target runs docker run --rm -it --privileged --network host against the existing led-ticker image — same privilege flags as compose.yaml. The script is bind-mounted from the repo, so iteration on the script itself doesn’t require make build. The first run does require the image to exist (make build once).

What it does

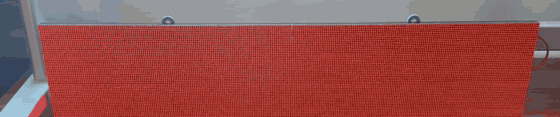

A bigsign panel on a wall cycling through full-frame red, green, blue, white, then black on real hardware, with the colors reflecting off the floor below.

The script cycles indefinitely through this sequence:

#	Color	RGB	What you should see
1	Red	(255, 0, 0)	Every LED on the chain glows pure red.
2	Green	(0, 255, 0)	Every LED on the chain glows pure green.
3	Blue	(0, 0, 255)	Every LED on the chain glows pure blue.
4	White	(255, 255, 255)	Every LED on the chain is fully lit on all three channels.
5	Black	(0, 0, 0)	All LEDs off.

Each color holds for --hold seconds (default 2.0). Per cycle it logs [N/5] <Name> (r, g, b) to stderr.

What it lets you diagnose

Symptom on panel	Likely cause	Where to fix
Some panels lit, others dark	Missing per-panel power lead	Check the per-panel power leads — every panel needs its own 5V lead from the supply; the data ribbon doesn’t carry power.
Red shows green, or Green shows blue, etc.	`led_rgb_sequence` is wrong	`[display] led_rgb_sequence` in your config — see config-options. Common values: `"RGB"` (default), `"BRG"` (panels wired G→R, R→B, B→G — typical Muen P2).
Bottom half of each panel garbled, mirrored, or stuck-on	`panel_type = "FM6126A"` missing or driver init not running	Set `[display] panel_type = "FM6126A"` (or `"FM6127"`). Without it FM6126A driver chips power up in a bad state.
Only the first panel of the chain lights up	`chain_length` set wrong, or HUB75 IDC cables crossed	Verify `[display] chain_length` matches your physical chain length. Then verify each panel’s OUT goes to the next panel’s IN — easy to flip an IDC cable.
Visible flicker during the solid-color holds	`gpio_slowdown` too low for your wiring	Bump `[display] gpio_slowdown` — Pi 4 typically wants `2`, longer chains and Pi 5 often want `3` or higher.
Dim or visibly-off pixels during the White frame	Hardware fault on those pixels	Physical inspection — replace the panel if widespread.
Pixels still glowing during the Black frame	Stuck-on pixels (hardware fault)	Physical inspection. Note position so you can rule it out in normal operation.

CLI flags

Flag	Type	Default	Meaning
`--config`	path	`config/config.longboi.toml`	Config TOML to read `[display]` from. Widget/section config is ignored.
`--hold`	float	`2.0`	Seconds to hold each color before advancing.

The script has no other arguments. It always cycles R → G → B → W → B and always loops forever.

Notes

sudo on the host path (host path only): the rgbmatrix C library needs /dev/mem access. On a Pi running the host (non-Docker) path you’ll need sudo uv run python scripts/panel_color_test.py … (or just sudo make panel-test). The Docker path handles this via --privileged — Docker users don’t need sudo.
Not a substitute for validate: panel-test cannot tell you anything about your widgets, transitions, or playlist. Use validate for config-layer checks and render-demo for widget-layer previews.
